ISL-Z main road multi-function oil sensor adopts patented multi-function integrated detection technology and industry-leading back-end data processing module to form a large-range, high-precision, multi-function oil comprehensive detection sensor, which greatly reduces the industry problems such as online oil monitoring site installation repeated holes and installation controls, and is a representative product with large range and multi-parameters in the industry. The sensor can be adapted to the flange conversion installation of different standards, suitable for the integrated installation of fan gear box, power system, diesel engine, Marine diesel engine and other systems, and can complete the detection of viscosity, density, dielectric constant, moisture content, temperature and wear particles at one time. At the same time, with the internal model data, optional: Real-time kinematic viscosity, 40℃ kinematic viscosity, 100℃ kinematic viscosity, viscosity index, conductivity and other detection indicators, truly realize the multi-functional small volume large integrated integrated application multi-functional online monitoring oil sensor.
Specification parameter
Monitoring index | Range | Accuracy | Resolution |
Dynamic viscosity | 10-1500cP | ±3% or 8cP | 0.01cP |
Saturation | 0.04-1aw | ±0.04 aw | 0.001aw |
Trace moisture | 1-10000ppm | ±10% or 50ppm | 1ppm |
Water content | 0.03‐100% (Range optional) | ±0.3 | 0.01% |
Oil quality | 1‐100 | ±3% | 0.01 |
Density | 600-1500kg/m3 | ±3% | 0.01kg/m3 |
Temperature | -35-85℃ | 0.5℃ or ±3% | 0.1℃ |
Ferromagnetic particles | 30-800μm | ≥95%(typical value) | Ferromagnetic≥30μm |
Non-ferromagnetic particles | 120-1600μm | ≥95%(typical value) | Non-ferromagnetic≥120μm |
Wear concentration | Real-time value | 1mg/L | 1mg/L |
Total QTY of particles in 24h | Real-time value | 1 | 1 |
Flow monitoring | Real-time value | 1ml/min | 1ml/min |
Electrical properties
Communication interface | Data transmission | Power | Voltage | Weight | Shell material | Cable length | Protection level |
6-core aviation plug | Modbus/CAN/4-20mA | ≤5W | DC 9V-36V | 4500g | Special aluminum | 10m | IP65 |
Related Product

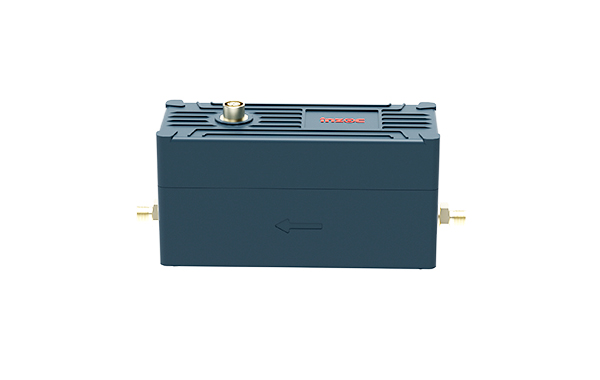

ISL-B Bypass Multi-Parameter Oil Sensor
